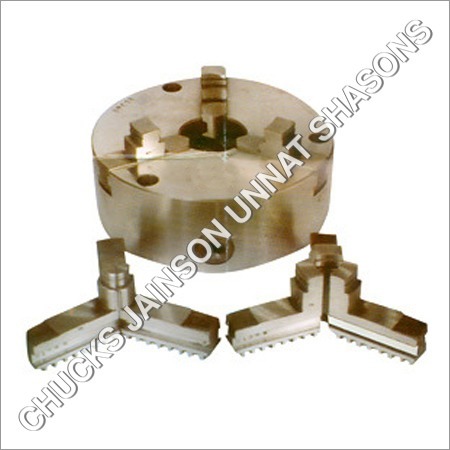

Cast Iron Bearing Chuck

Name: Cast Iron Bearing Chuck
Brand: JAINSON SALES CORPORATION
Price: 5000 INR
Availability: InStock

5000 INR/Piece

Get a Price/Quote

Product Details:

Spindle Speed Suitable up to 2500 RPM
Application Used for holding bearings or workpieces in lathes and machine tools
Noise Level Low
Cutting Speed Depends on machine application
Tool Type Lathe machine chuck
Power Source Manual
Product Type Bearing Chuck
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Cast Iron Bearing Chuck Price And Quantity

Price 5000 INR/Piece
Minimum Order Quantity 1 Piece

Cast Iron Bearing Chuck Product Specifications

Tool Type Lathe machine chuck
Feature Corrosion resistant, Heavy duty, Precise clamping
Capacity Varies by model (commonly up to 200 mm diameter)
Power Source Manual
Automatic Grade Manual
Cutting Speed Depends on machine application
Noise Level Low
Drive Type Hand Driven
Application Used for holding bearings or workpieces in lathes and machine tools
Material Cast Iron
Control System Mechanical
Color Grey
Computerized No
Product Type Bearing Chuck
Spindle Speed Suitable up to 2500 RPM

Cast Iron Bearing Chuck Trade Information

Supply Ability 500 Piece Per Day
Delivery Time 5-6 Days

Product Description

We are a certified company, engaged in manufacturing and exporting supreme quality assortment of Bearing Chuck. Through the hand of deft professionals, this is manufactured using premium quality materials in various specifications. It is designed for medium or heavy duty portable, bench or floor mounted power tools. This chuck has centre ground jaws for absolute straightness & alignment, and it provides wear resistance. Moreover, we are offering this Bearing Chuck in several sizes at industry leading prices.

Features:

Robust construction
The key holes of this chuck provide wear resistance
High gripping surface hardness

Technical Specifications

Size	d1	d2	d3	d4	d5	d6	h1	k	t	Approx Gross Wt. in kgs
80 mm	82	71	62	M-6	19	M-5	43	6	3	2
100 mm	102	87	76	M-8	23	M-6	48	8	3	3
125 mm	125	108	95	M-8	32	M-6	55	9	4	5
160 mm	160	140	125	M-10	42	M-10	65	10	4	9
200 mm	200	176	160	M-10	55	M-10	73	11	4	16
250 mm	250	224	200	M-12	76	M-12	78	12	5	30
315 mm	315	286	260	M-16	103	M-12	90	14	5	50

Body : High tensile strength , wear resistant cast iron with front and back mounting bolts.

Scroll : Alloy steel hardened scroll with thread ground from both sides.

Jaws : Case hardened steel , precisely ground for accuracy.

Pinion : Alloy steel hardened.

Standard Accessories

A set of reverse jaws
Key handle
Front mounting bolts

Heavy-Duty Construction for Precision Performance

Built from superior cast iron, this bearing chuck stands up to intensive use in industrial settings. Its mechanical design ensures accurate clamping of workpieces, offering stability and minimal vibration during operations. The corrosion-resistant finish provides lasting durability, even in challenging workshop environments.

Versatile Application in Lathe Machine Operations

Ideal for holding bearings or components securely, the chuck excels on lathe machines and similar tools. It suits various machining processes, reliably supporting workpieces up to 200 mm in diameter and enabling smooth rotation at speeds up to 2500 RPM. Its manual, hand-driven function caters to both precision and user control.

FAQs of Cast Iron Bearing Chuck:

Q: How is the Cast Iron Bearing Chuck installed on a lathe machine?

A: To install the cast iron bearing chuck, align its mounting interface with the lathe spindle, then securely fasten it using the mechanical locking system. Ensure the surfaces are clean and free of debris to maintain precise clamping and safe operation.

Q: What materials are compatible for clamping with this chuck?

A: The chuck handles a variety of materials commonly used in machining, including bearings made from metals or alloys and standard workpieces up to 200 mm in diameter. Its sturdy cast iron build ensures reliable performance across different material types.

Q: When should I use a manual, hand-driven chuck rather than an automatic alternative?

A: Manual, hand-driven chucks are preferred in scenarios requiring high levels of user control, precise clamping, and when working with varied sizes or non-standard workpieces. They are also ideal where electrical automation is unnecessary or unavailable.

Q: Where can the Cast Iron Bearing Chuck be sourced in India?

A: This chuck is available from leading distributors, manufacturers, suppliers, exporters, and traders across India. It is widely distributed through industrial supply chains and can be acquired for small workshops or large-scale factories alike.

Q: What is the process of securing a workpiece within the chuck?

A: After mounting the chuck, the workpiece is positioned within its jaws. Using the hand-driven mechanism, the jaws are tightened mechanically to achieve precise clamping. Always verify alignment prior to commencing machining to ensure optimum safety and accuracy.

Q: How does the corrosion-resistant feature benefit the chuck in Indian workshop conditions?

A: The corrosion-resistant grey finish protects the chuck from moisture and chemical exposure prevalent in Indian workshop environments, significantly extending its operational lifespan and reducing maintenance requirements for users.

Q: What are the advantages of using this heavy-duty chuck for lathe applications?

A: Its heavy-duty cast iron construction offers stability and durability under high spindle speeds, while the mechanical clamping system guarantees precision. These features, together with low noise operation and ability to hold large workpieces, greatly enhance overall machining efficiency.
