Cast Iron Special Chuck
5000 INR/Piece
Product Details:
X
Cast Iron Special Chuck Price And Quantity
- 5000 INR/Piece
- 1 Piece
Cast Iron Special Chuck Trade Information
- 500 Piece Per Day
- 5-6 Days
Product Description
From the year of inauguration of our organization; we are offering Special Chuck to the precious patrons. Our offered chuck is used in various industries for quick and easy completion of various works. This is made in strict compliance with the international standards. Our prestigious clients can avail this Special Chuck in different specifications at industry leading prices.

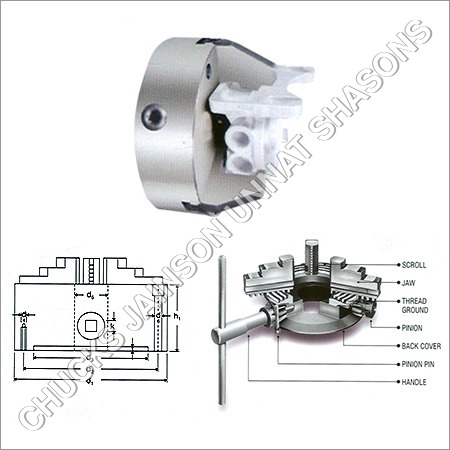

Features:
Body: High tensile, wear resistant cast iron, Front & back mounting
Scroll: Alloy steel hardened scroll. Thread ground from both sides
Jaws: Case hardened steel. Precisely ground for accuracy
Pinion: Alloy steel hardened
Std. Acc: (1)A set of reverse jaws (2) Key handle (3) Back mounting bolts.
Technical Specifications
| Size | D1 | D2 | D3 | D4 | D5 | D6 | H1 | k | t | Approx Gross wt. In kgs |
| 80mm | 82 | 71 | 62 | M-6 | 19 | M-5 | 43 | 6 | 3 | 2 |
| 100mm | 102 | 87 | 76 | M-8 | 23 | M-6 | 48 | 8 | 3 | 3 |
| 125mm | 125 | 108 | 95 | M-8 | 32 | M-6 | 55 | 9 | 4 | 5 |
| 160mm | 160 | 140 | 125 | M-10 | 42 | M-10 | 65 | 10 | 4 | 9 |
| 200mm | 200 | 176 | 160 | M-10 | 55 | M-10 | 73 | 11 | 4 | 16 |
| 250mm | 250 | 224 | 200 | M-12 | 76 | M-12 | 78 | 12 | 5 | 30 |
| 315mm | 315 | 286 | 260 | M-16 | 103 | M-12 | 90 | 14 | 5 | 50 |
