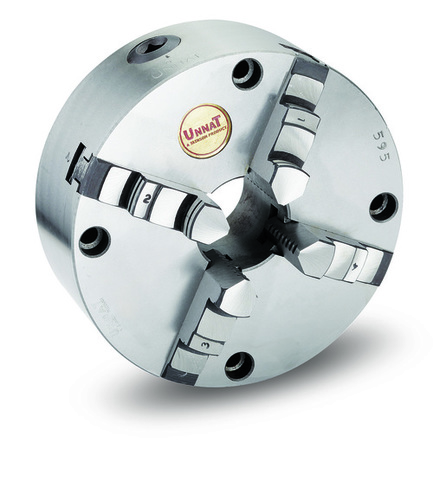

4 Jaw Chuck

Name: 4 Jaw Chuck
Brand: JAINSON SALES CORPORATION
Price: 5000 INR
Availability: InStock

5000 INR/Piece

Get a Price/Quote

Product Details:

Spindle Speed Up to 2800 RPM
Application Lathe Machine, Metal Holding, Heavy Engineering
Cutting Speed Depends on Lathe, Up to 300 m/min
Noise Level < 70 dB
Tool Type Lathe Chuck
Power Source None (Hand Operated)
Product Type 4 Jaw Chuck
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

4 Jaw Chuck Price And Quantity

Minimum Order Quantity 1 , , Piece
Price 5000 INR/Piece

4 Jaw Chuck Product Specifications

Product Type 4 Jaw Chuck
Color Silver/Grey
Spindle Speed Up to 2800 RPM
Automatic Grade Manual
Capacity Up to 200 mm diameter workpiece
Computerized No
Control System Manual Clamping
Weight (kg) 15 kg (approx.)
Power Source None (Hand Operated)
Feature Reversible jaws, Independent adjustment
Dimension (L*W*H) 250 mm x 250 mm x 100 mm
Drive Type Hand Operated
Application Lathe Machine, Metal Holding, Heavy Engineering
Cutting Speed Depends on Lathe, Up to 300 m/min
Noise Level < 70 dB
Material High-Grade Alloy Steel
Tool Type Lathe Chuck

4 Jaw Chuck Trade Information

Supply Ability 500 , , Piece Per Day
Delivery Time 5-6 Days

Product Description

4 Jaw Chuck

Strongly supported by a deft team of experts, we are able to offer an unparalleled gamutof4 Jaw Chuck. Under the observation of our team, this is manufactured using quality approved materials and pioneering techniques. The offered chuck is typically used in applications where the work piece is irregular in shape. It is used in machines without hydraulic cylinders. We offer our clients a high grade of 4 Jaw Chuck in diverse specifications at economical price.

Features:

Supreme strength
Robust construction
Easy installation with no additional adapters required

Body: High tensile, wear resistant cast iron, Front & back mounting

Scroll: Alloy steel hardened scroll. Thread ground from both sides

Jaws: Case hardened steel. Precisely ground for accuracy

Pinion: Alloy steel hardened

Std. Acc: (1)A set of reverse jaws (2) Key handle (3) Back mounting bolts.

Technical Specifications

Size	D1	D2	D3	D4	D5	D6	H1	k	t	Approx Gross wt. In kgs
80mm	82	71	62	M-6	19	M-5	43	6	3	2
100mm	102	87	76	M-8	23	M-6	48	8	3	3
125mm	125	108	95	M-8	32	M-6	55	9	4	5
160mm	160	140	125	M-10	42	M-10	65	10	4	9
200mm	200	176	160	M-10	55	M-10	73	11	4	16
250mm	250	224	200	M-12	76	M-12	78	12	5	30
315mm	315	286	260	M-16	103	M-12	90	14	5	50

Engineered for Precision and Versatility

Our 4 Jaw Chuck is meticulously engineered to deliver tight concentricity and robust clamping, thanks to independently adjustable and reversible jaws. It covers a versatile gripping range of 5 mm to 200 mm, easily handling both small and large workpieces for a range of lathe operations across various industries.

Durability and Heavy-Duty Performance

Made from high-grade alloy steel and hardened to 55-60 HRC, this chuck is built to withstand demanding tasks in heavy engineering environments. The threaded back plate ensures secure mounting, while precision ground surfaces enhance tool longevity and reliable operation.

User-Friendly Features and Maintenance

Hand-operated for maximum control, this chuck comes with a convenient chuck key, and grease nipples simplify routine lubrication. Its design ensures easy, independent jaw adjustment for different shapes and sizes of workpieces, making it suitable for both skilled professionals and industrial users.

FAQs of 4 Jaw Chuck:

Q: How does the independent jaw adjustment benefit the user?

A: The independent jaw adjustment allows each of the four jaws to be set separately, accommodating irregularly shaped workpieces and enabling more precise centering during turning operations. This offers greater flexibility compared to self-centering chucks.

Q: What types of lathe machines is this 4 jaw chuck compatible with?

A: This chuck is designed for universal lathe machines equipped with a compatible threaded back plate, making it suitable for a wide range of metalworking environments.

Q: When should I use the reversible jaws feature?

A: Reversible jaws are ideal for gripping both internal and external diameters. Use them in their reversed position when working with larger diameter parts beyond the standard grip range, enhancing the chucks versatility.

Q: Where should the chuck be lubricated, and how often?

A: Lubrication points are provided via grease nipples on the chuck body. Regular lubrication, typically every few operational days or as per usage intensity, will ensure smooth movement and prolong the chucks lifespan.

Q: What is the benefit of the high jaw hardness rating?

A: With a hardness of 55-60 HRC, the jaws resist wear and deformation during heavy clamping, ensuring consistent performance and extended service life under demanding applications.

Q: How do I ensure optimal clamping force during operation?

A: Use the included chuck key to tighten each jaw individually, checking that the workpiece is aligned and secure. Applying consistent force to all jaws ensures optimal grip, safety, and precision during heavy-duty turning.
